Compact
Substation
A compact substation is used for feeding power from high voltage to low voltage in open cast mines, construction sites in metropolitan cities, etc. The compact substation size is small and suitable for frequent shifting and for use in both indoor and outdoor locations. The substation is installed and mounted on the skid frame, wheels, or channels and is provisioned with lifting hooks.
Advantages
- Compact size with DGPT relay
- All-in-one instrument with gas detection, pressure control, oil temperature, and level control
- Corrugated tank for compactness
- Energy efficient with BIS specifications
Advantages
- Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Maecenas porttitor congue massa. Fusce posuere, magna sed pulvinar.
- Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Maecenas porttitor congue massa. Fusce posuere, magna sed pulvinar.
- Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Maecenas porttitor congue massa. Fusce posuere, magna sed pulvinar.
- Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Maecenas porttitor congue massa. Fusce posuere, magna sed pulvinar.
Key Features
- Design conforms with IEC 62271-202 standards
- Compartmentalised construction to prevent accidental entry to energised areas
- Meets IP53/IP23 degree of protection
- Configuration tailored to customer needs
- Designed to withstand electrical impulses, thermal, and dynamic stresses
- Low power loss and low noise transformer
- Number of feeders for LV can be customer-specific
- Easy to install
- Delivery-ready for commissioning
- Modern manufacturing techniques to ensure cost effectiveness, reliability, and long-lasting trouble-free performance
Specifications
Electrical characteristics
- Rated voltage (kV): 12V
- Rated insulation level (kVrms/kVp: 28/75)
- Rated frequency (Hz): 50
Ratings
- Oil-filled transformer: 63kVA to 2500kVA
- HV voltage: 11kV compact substation
- LV voltage: 433V, 3 Phase
- Frequency: 50Hz

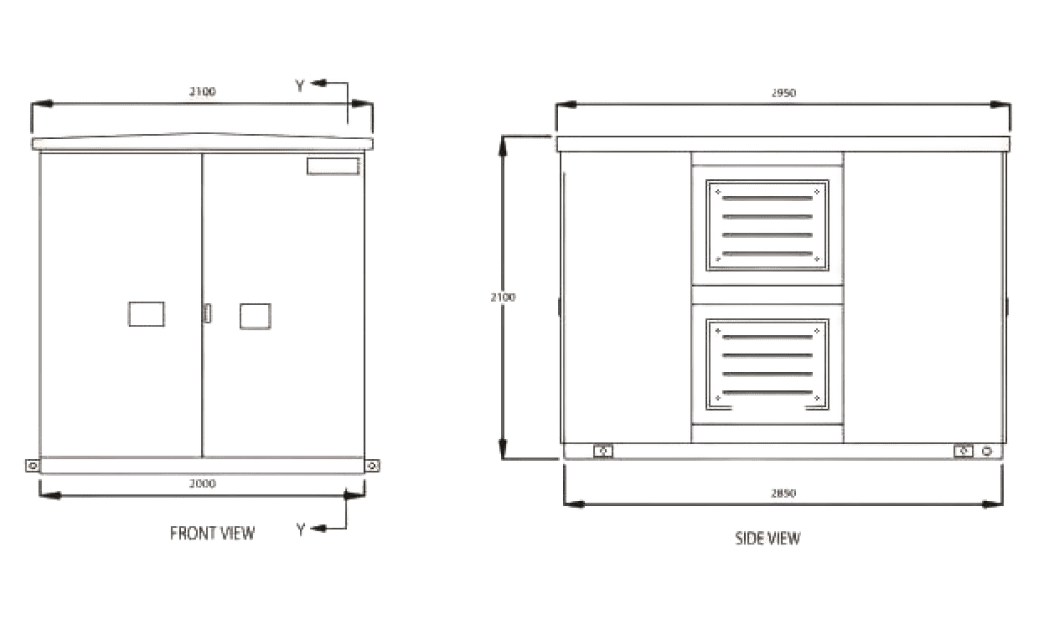

- Dimensions: Up to 1000kVA - 1250kVA to 2500kVA 2100mm (W) x 2950mm (L) x 2100mm (H) 2300mm (W) x 4200mm (L) x 2100mm (H)
Dry / Cast Resin / VPI
- Transformer: 63kVA to 2500kVA
- HV voltage: 11kV compact substation
- LV voltage: 433V, 3 Phase
- Frequency: 50Hz
- Dimensions: Up to 1000kVA - 1250kVA to 2500kVA 2100mm (W) x 2950mm (L) x 2100mm (H) 2300mm (W) x 4200mm (L) x 2100mm (H)
- RMU: 11kV, 3 Phase, 50Hz Switch-630A, 12kV, 21kA, 3 phase Breaker-200A/630A, 12kV, 21kA, 3 phase
- Transformer: 11kV/433Vr 3 phase, 50Hz with off circuit tap switch +5% to -10% in steps of 2.5% Vector Group Dyn 11
- LV breaker: 433V, 3 Phase 50Hz
- Incomer breaker: 400A to 2500A, 50Hz
- Distribution MCCBs: 100A to 800A, 50kA
